Drake Construction initially started the marine division to haul aggregates within the region to support our projects. Over 20 years later, it has grown to not only support our efforts within the Northwest Arctic Borough but has helped numerous customers with equipment, materials, and other freight needs to nearly every village in the region. From Buckland to Kobuk, we are there to help with your marine freight needs.

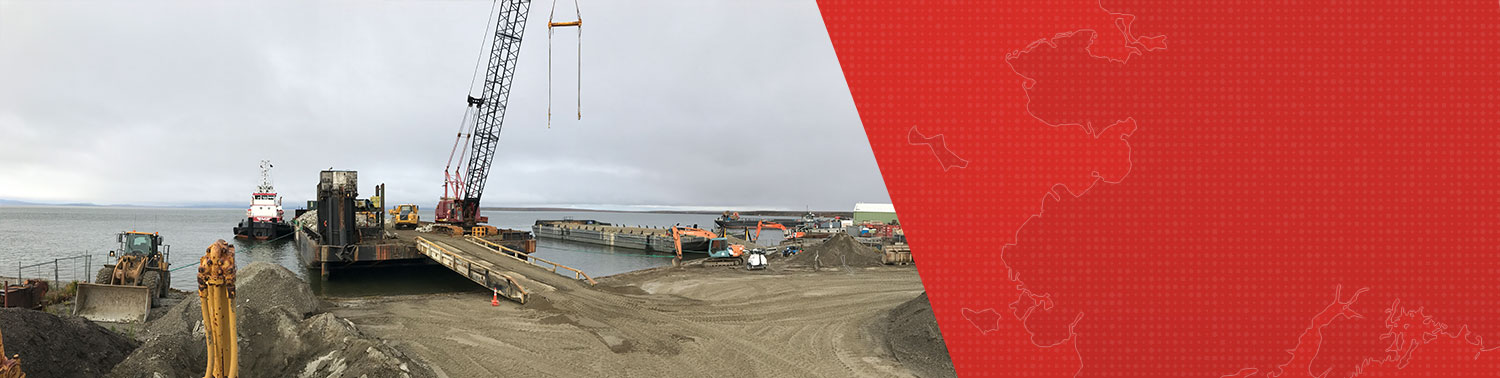

Drake Construction Pulling a Barge Out of the Water
Our Marine Vessels
Official No:
503189
Hailing Port:
Kotzebue, AK
Construction:
Aluminum
Overall Dimensions:
Length: 74'8", Breadth: 24', Depth: 5'2"
Hull Configuration:
Landing Craft
Tonnage:
GRT 86 / NRT 74
Main Engines:
3 EA. John Deere 6081 AFM Tier II
Total HP:
900 HP
Reduction Gears:
3 EA. Twin Disk MG5091 2.04/1 Ratio
Propellers:
3 EA. 26” diameter
Light Draft:
AFT – 3’6” FORE: 1’
Loaded Draft:
AFT – 3’6” FORE: 3’6”

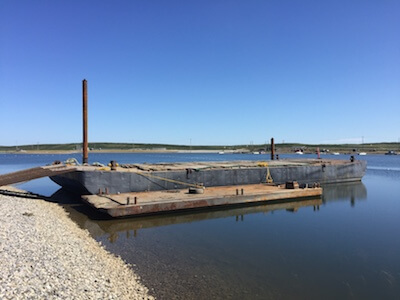

Official No:
519122
Hailing Port:
Kotzebue, AK
Construction:
Steel
Hull Configuration:
Deck Barge
Tonnage:
GRT 588
Dimensions:
150’L x 54’W x 9.5’D
Hydraulic Bow Ramp:
22’W x 24’L

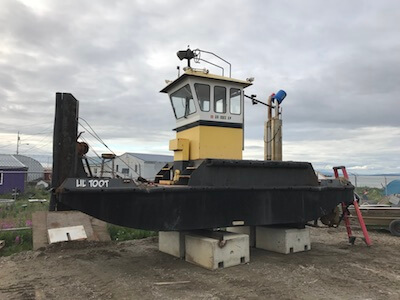

Hailing Port:
Kotzebue, AK
Construction:
Steel
Hull Configuration:
Push
Dimensions:
24’9'L x 8’W x 3’D
Main Engines:
2 EA. John Deere 4045
Total HP:
300 HP
Reduction Gears:
2 EA. Twin Disk 506 3.0/1 Ratio
Propellers:
2 EA.
Hailing Port:
Kotzebue, AK
Construction:
Steel
Hull Configuration:
Deck Barge
Dimensions:
80’L x 34’W x 5’D
Additional Gear:
Ramps, 20' Spuds
